RG-RAP72, Wi-Fi 7 BE3600 Ceiling-Mount Access Point

Smart home, hotel, office, etc.

Models
RG-RAP72Pro

Wi-Fi 7,BE5040,2.5GE Port

 RG-RAP73HD

Wi-Fi 7,18658Mbps,1*SFP+,1*2.5GE,MLO

 RG-RAP72

Wi-Fi 7, BE3060, 2.5GE Port
Series
Wi-Fi 5 Ceiling AP Wi-Fi 6 Ceiling AP Wi-Fi 7 Ceiling AP
Datasheet Sales Enquiry
Add to Favorites
Highlight Features
  • AI-powered Wi-Fi 7 ceiling-mount AP with dual-radio performance
  • Support AI Optimization (WIO 3.0)
  • Easy installation, compact size
  • New circular design, seamlessly blending with different decoration styles
  • Tailored for business needs with Reyee Mesh, standalone portal, and AI roaming features
Sales Enquiry
Features

  • Next-Gen Speed, Within Reach

  • Pro Performance, Starter Price

    Wi-Fi 7 | 2.5 GbE Port | BE3600

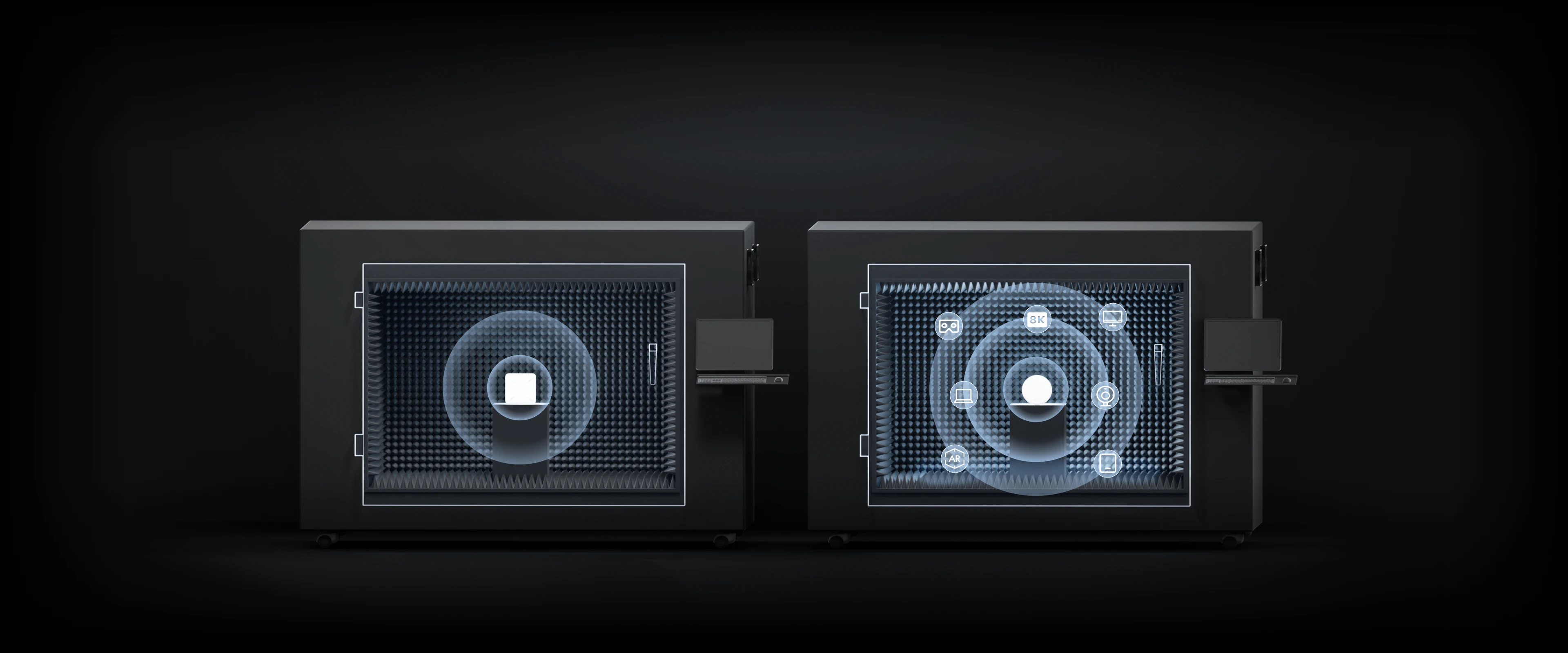

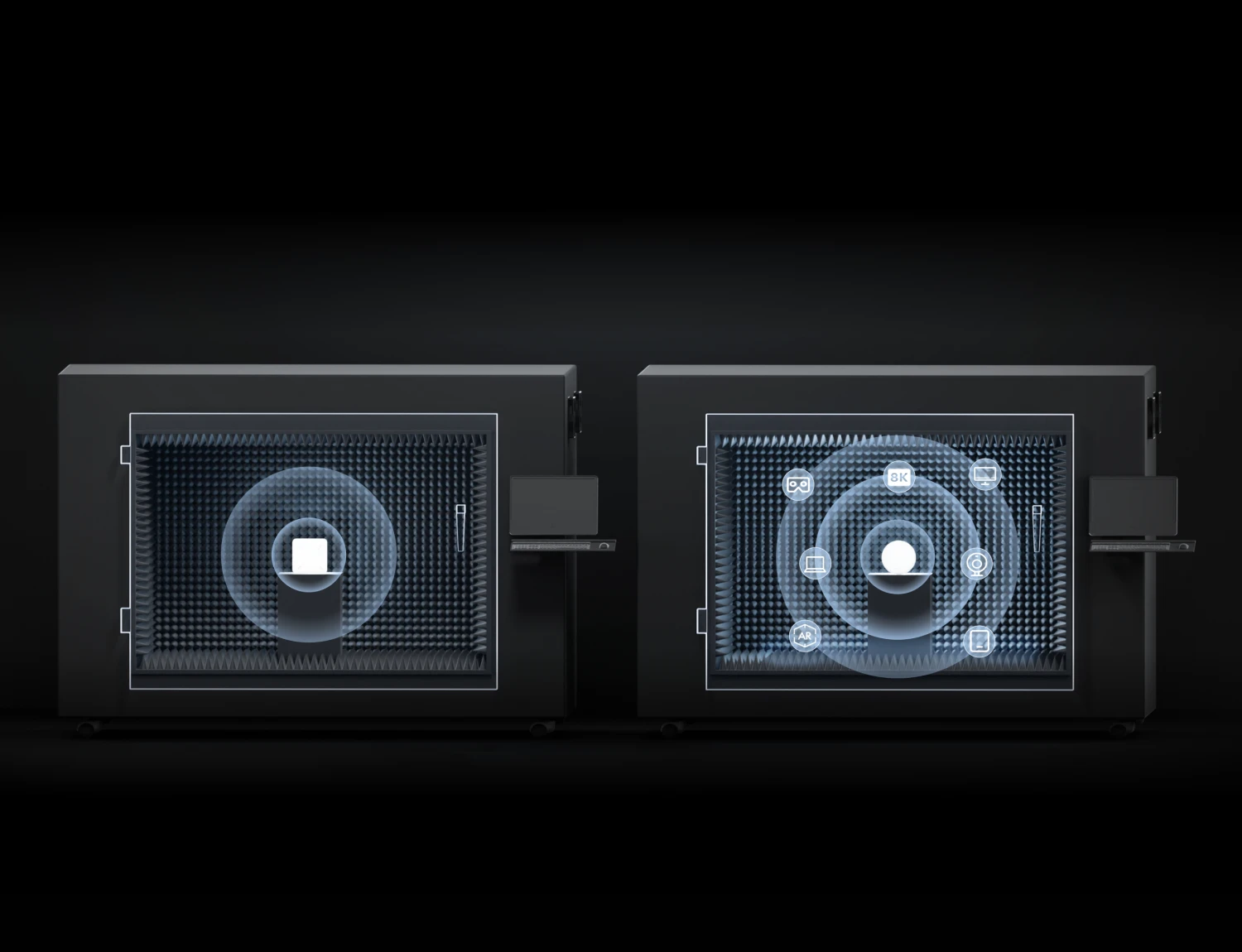

Enterprise-level Algorithm for Signal Optimization

    • Pro Performance, Starter Price

      Coverage: 110 ㎡ vs Standard 140 ㎡ @ 5 GHz

      Traditional WiFi 6 devices: 110 ㎡ / 1184.03 sq. ft

      RAP72: 140 ㎡ /
      1506.95 sq. ft

  • Actual Speed: 2,714 Mbps
    (Lab Environment)

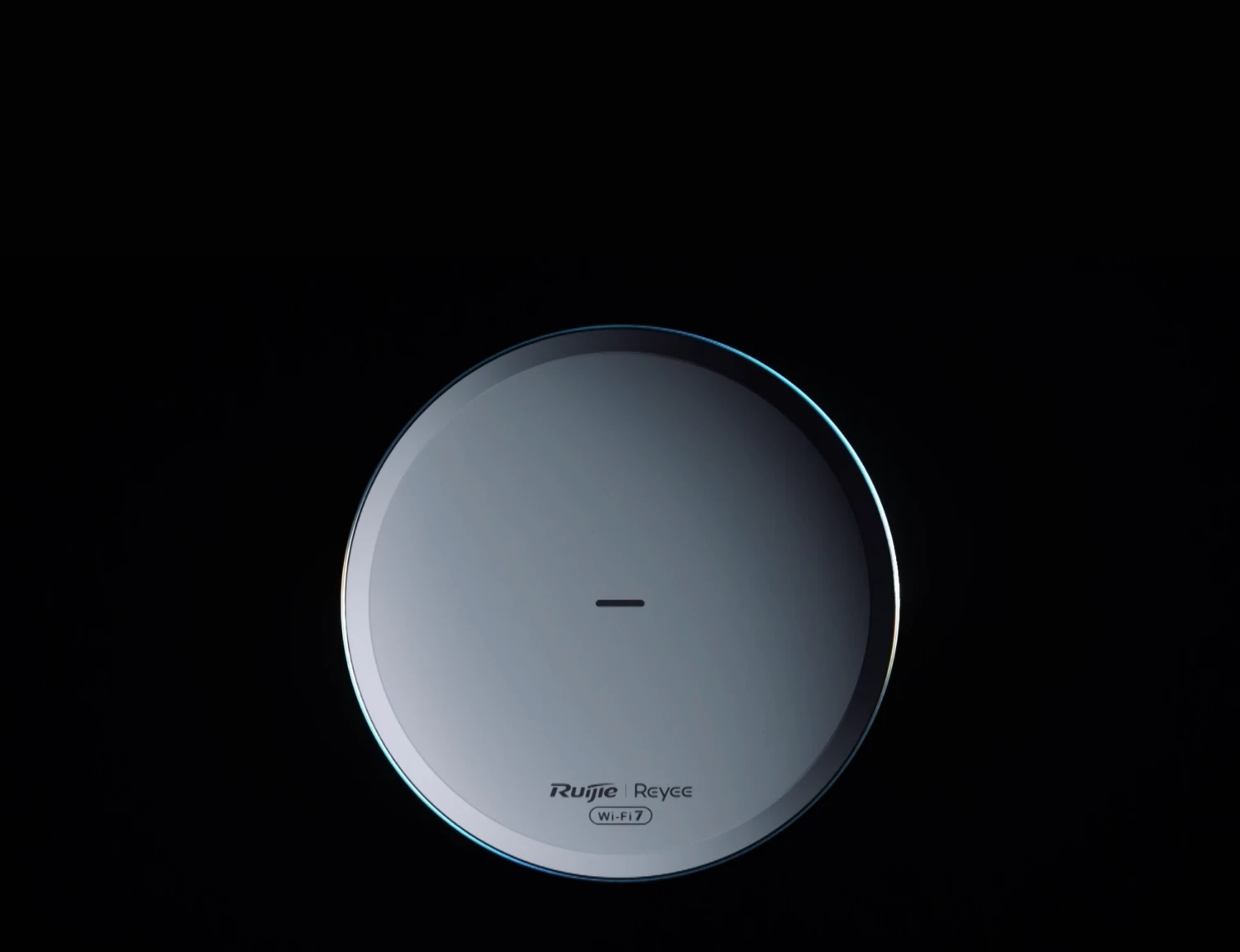

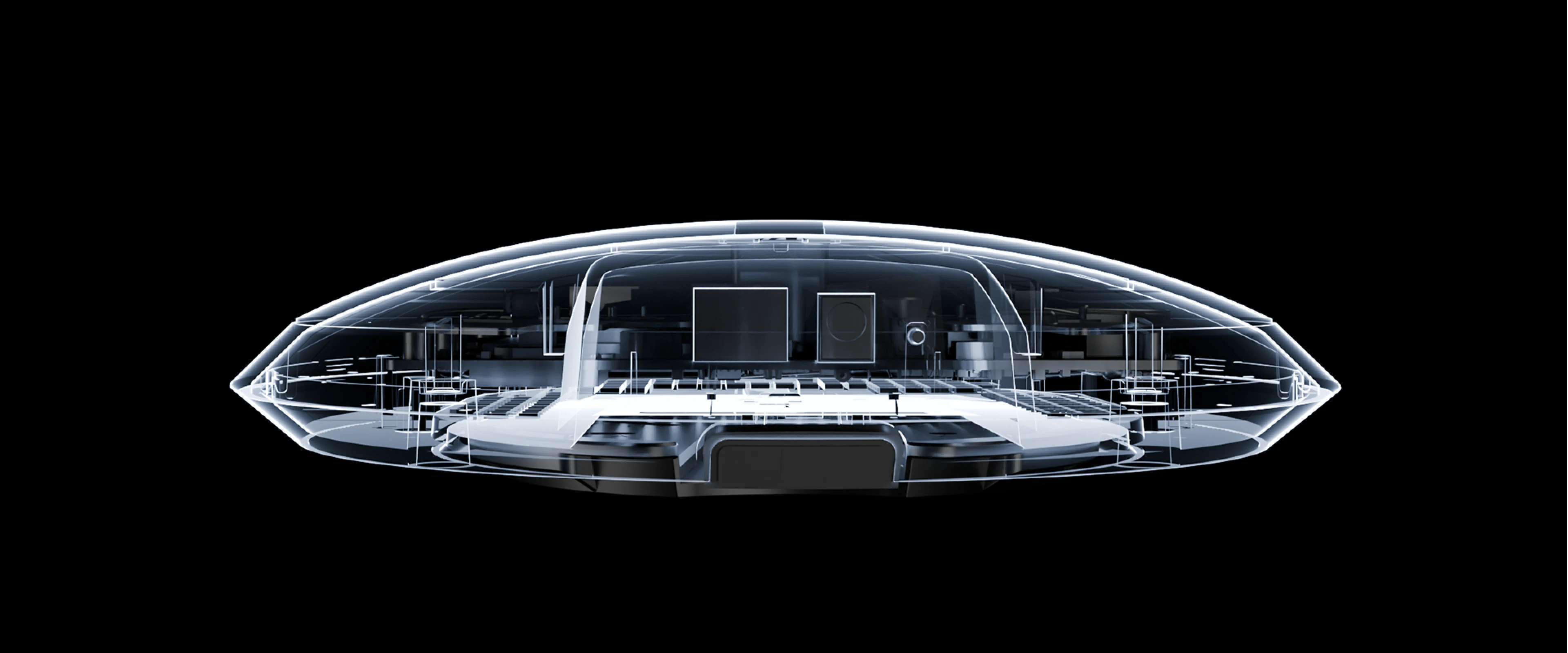

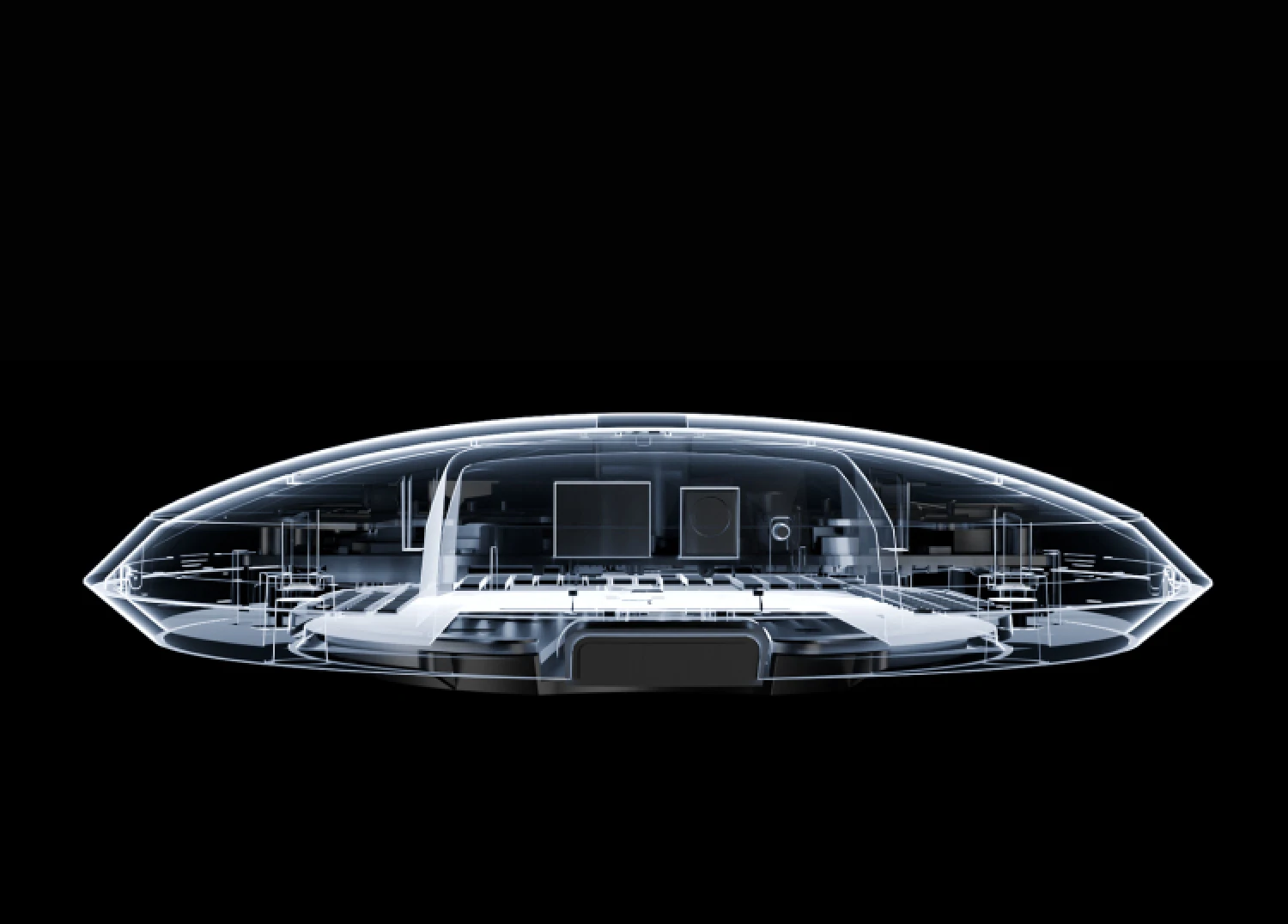

Where Minimalism Meets
Signal Mastery

  • From Polygon Concepts to
    Optimal Omni-Directional Form

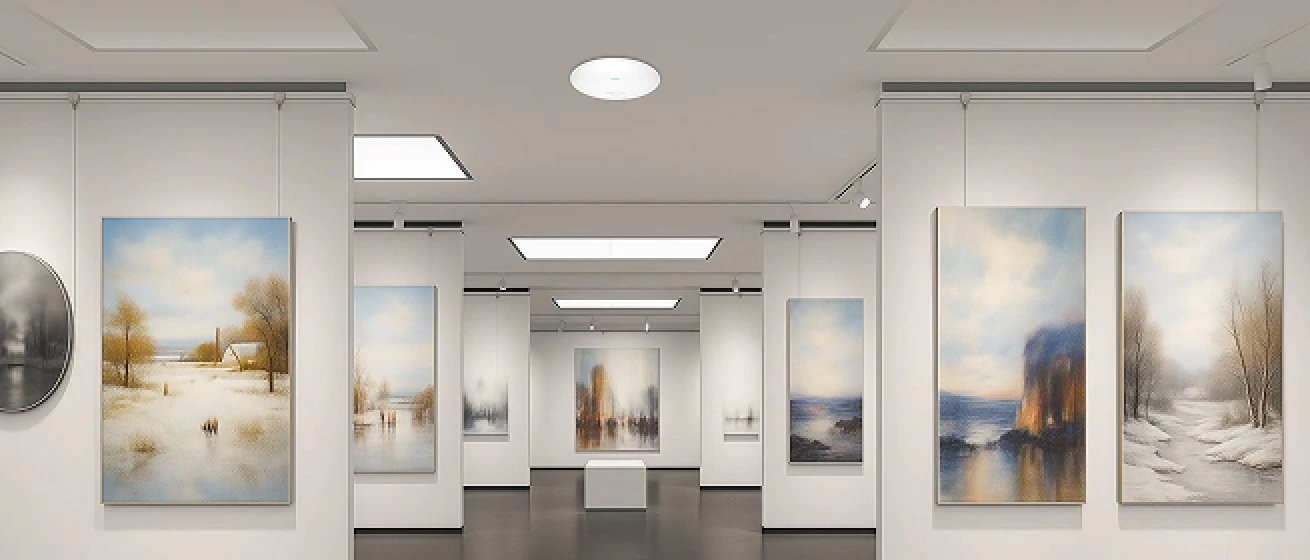

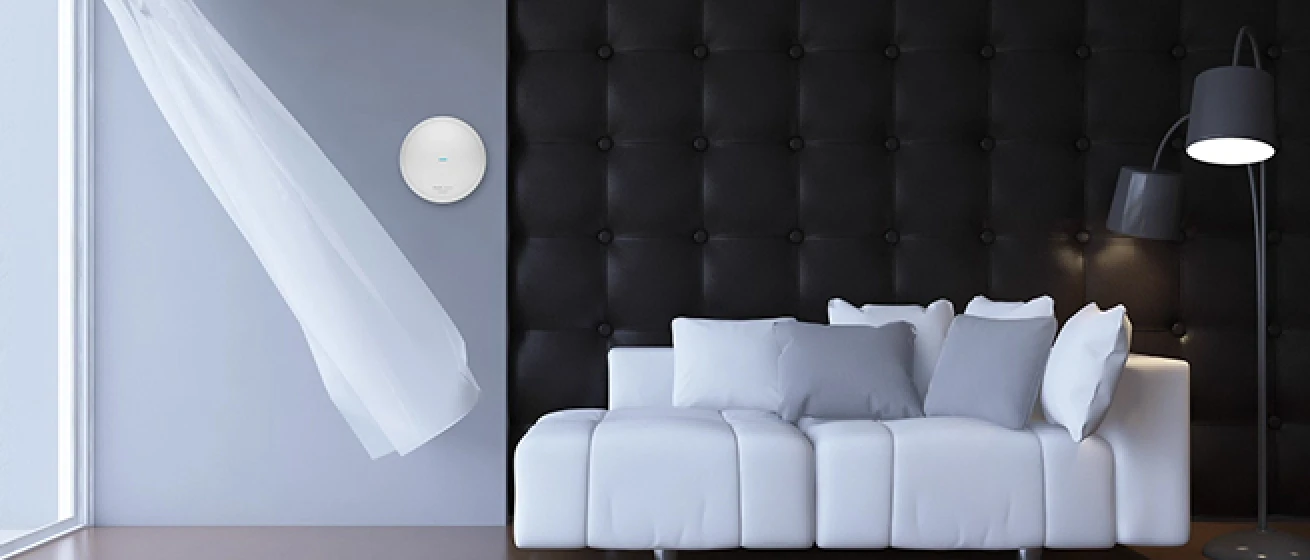

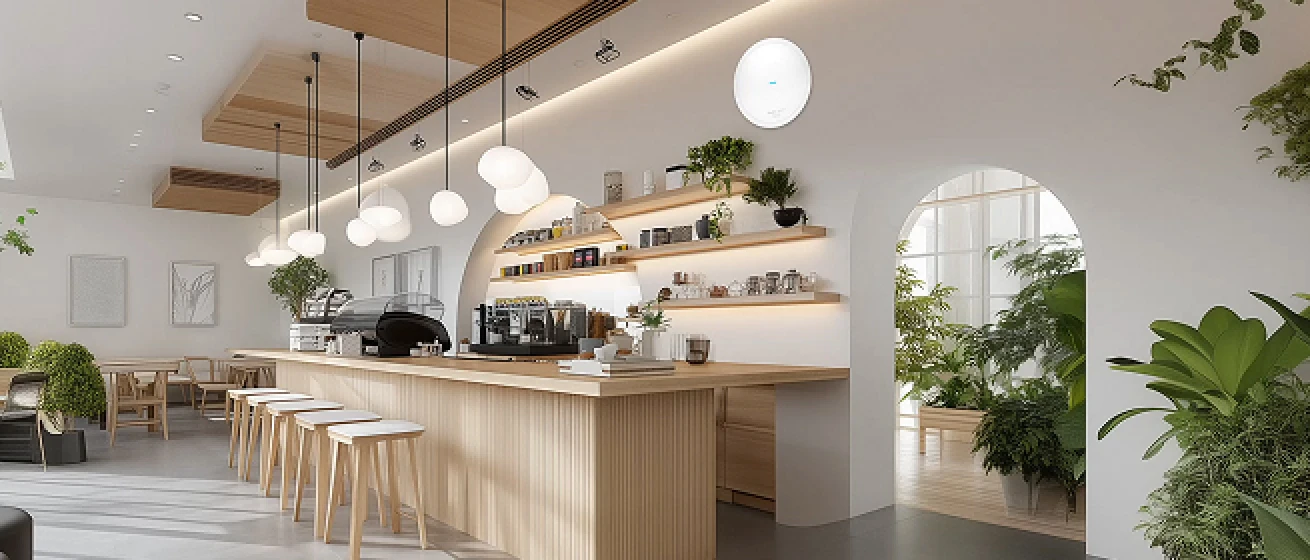

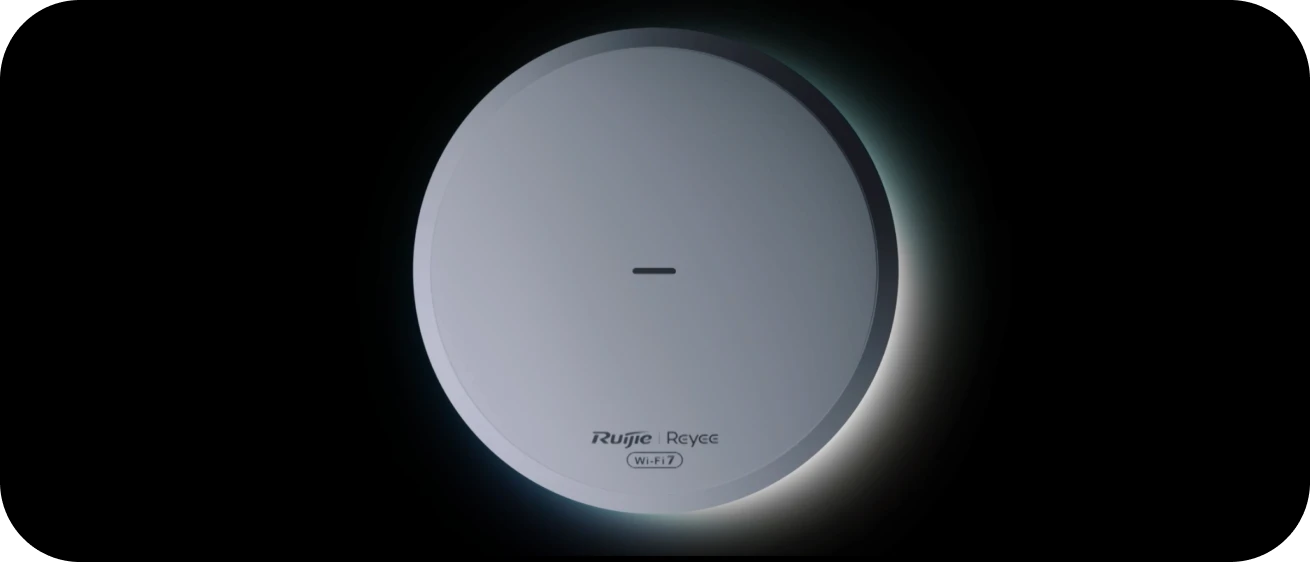

  • Seamless Integration
    in Modern Spaces

  • Seamless Integration
    in Modern Spaces

  • Seamless Integration
    in Modern Spaces

One More Device, Endless Possibilities

  • Office Area

    100+ Concurrent Connections

  • Game Zone

    < 10 ms Latency Guaranteed

  • Home scene

    - 20 °C to 60 °C Operational Range

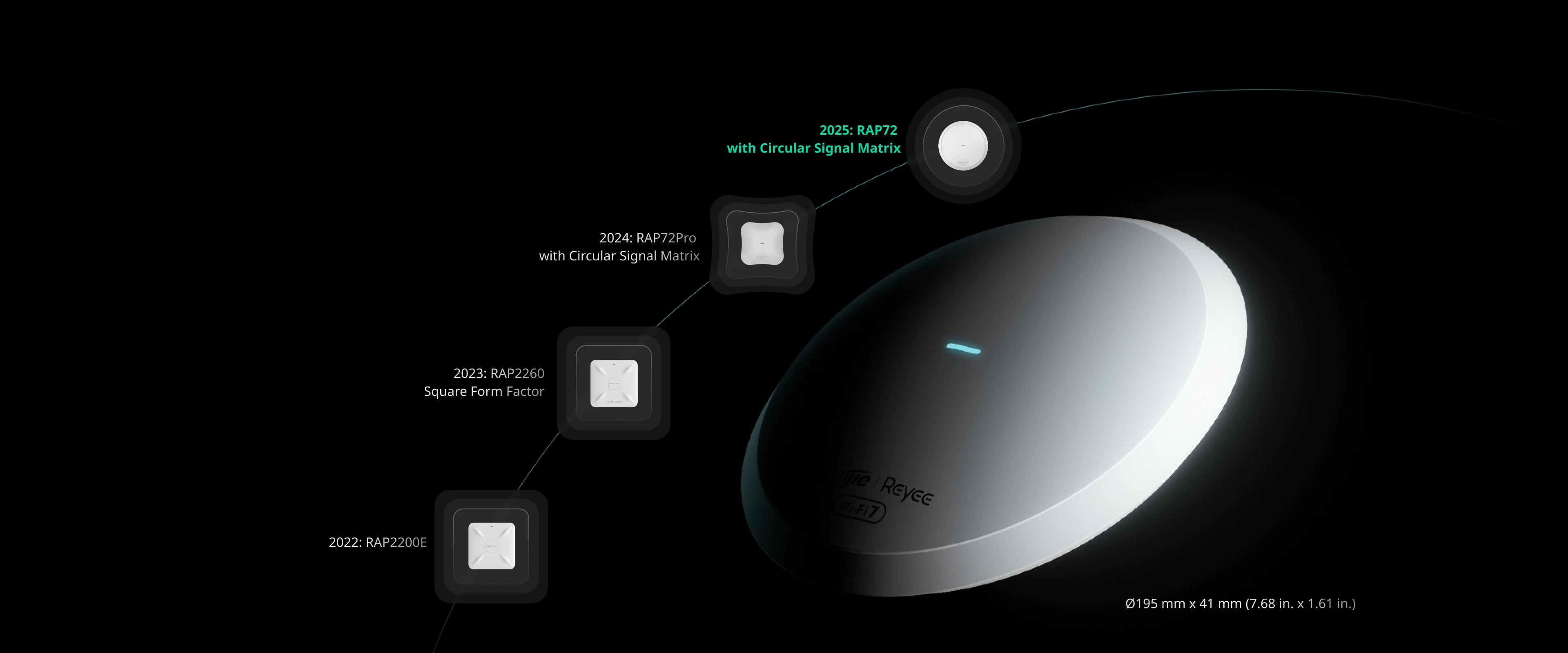

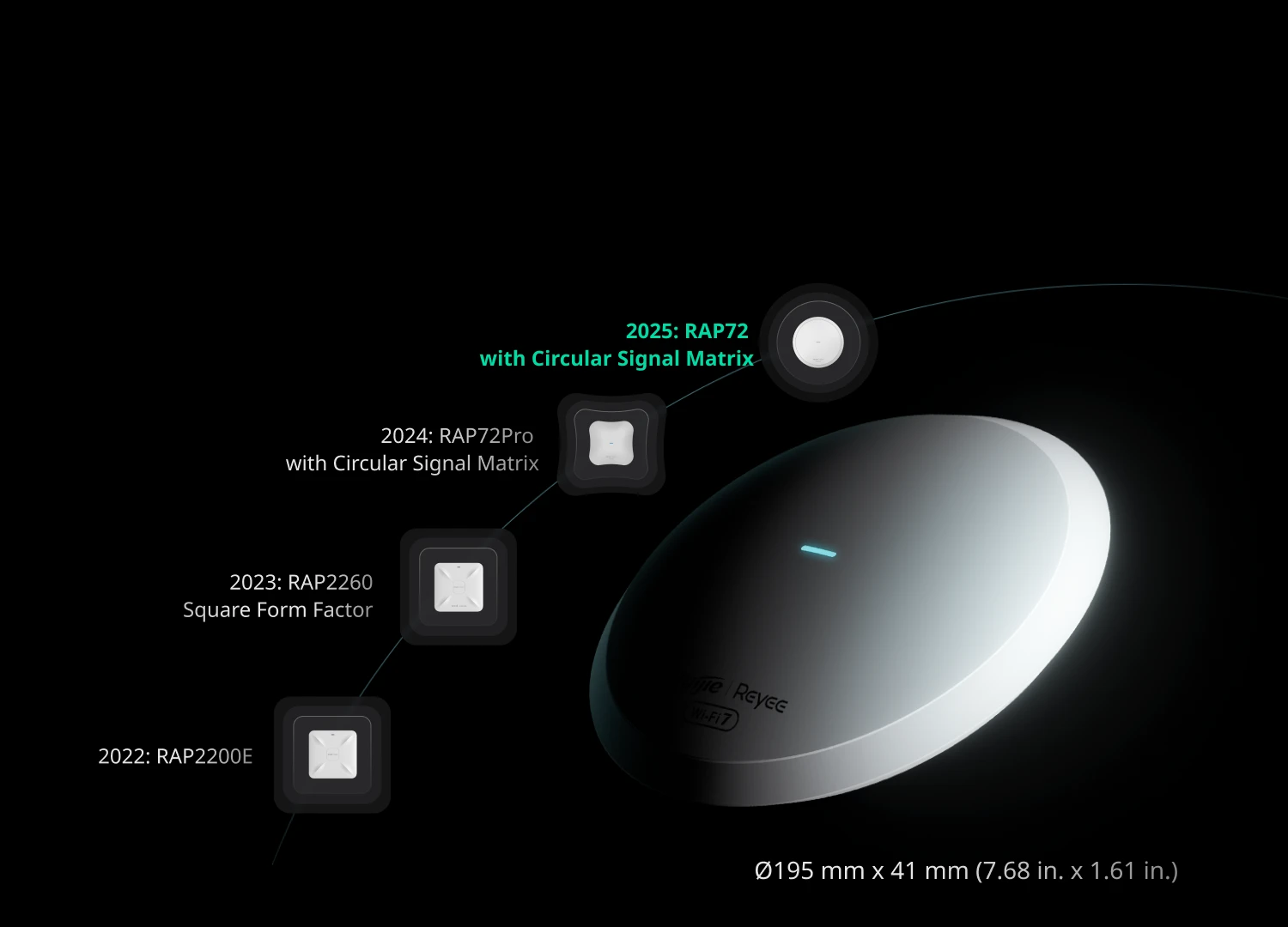

Evolving Design,
Consistent Excellence

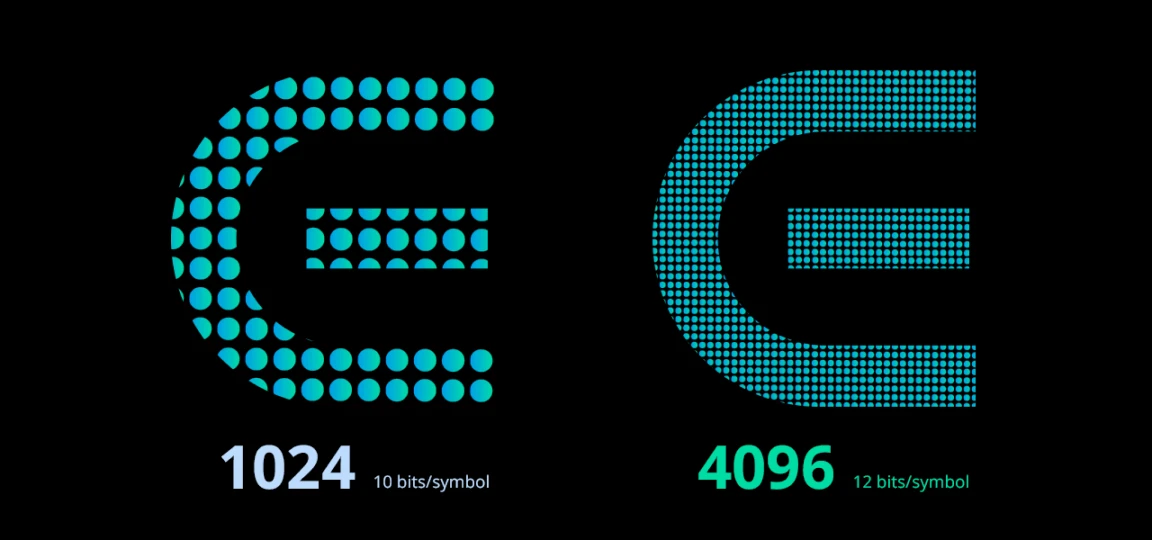

4K QAM

4K QAM

Delivers up to 20% faster data speeds for
ultra-responsive streaming and gaming

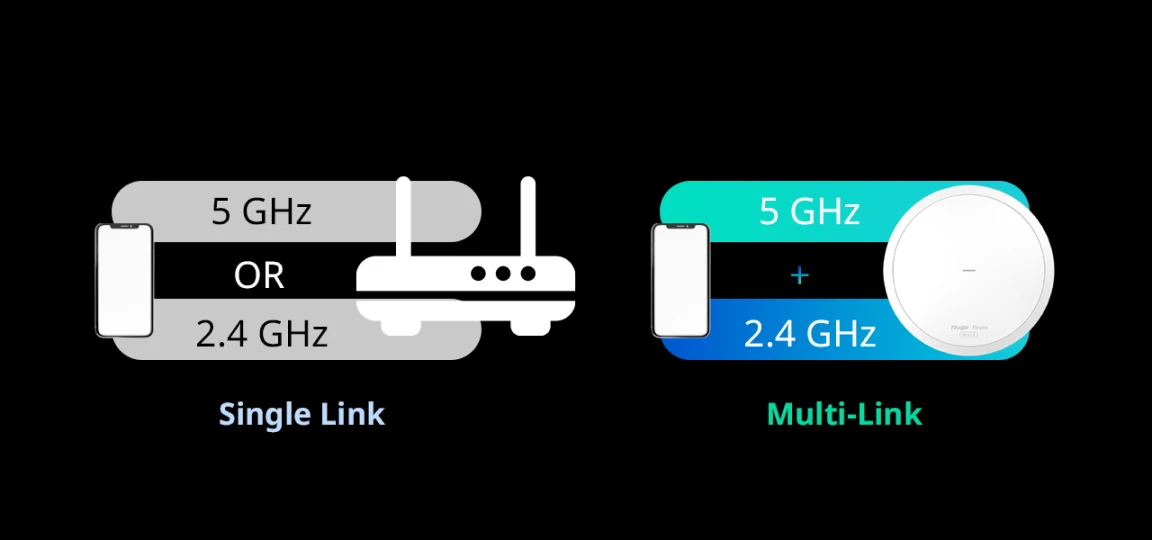

MLO

Multi-Link Operation

Ensures seamless connectivity and reduced lag by
simultaneously bonding 2.4 GHz and 5 GHz bands

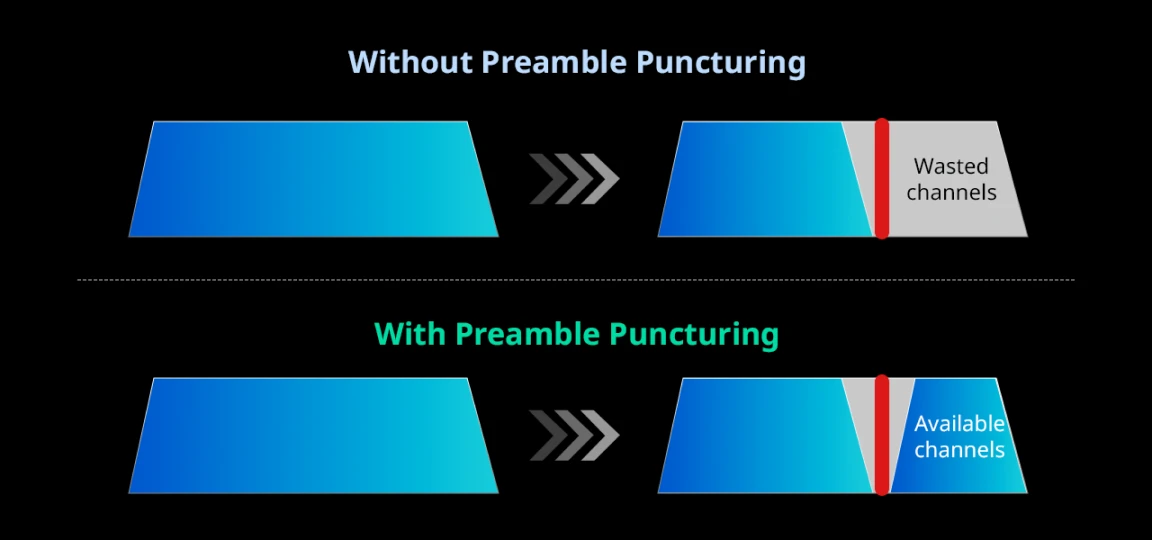

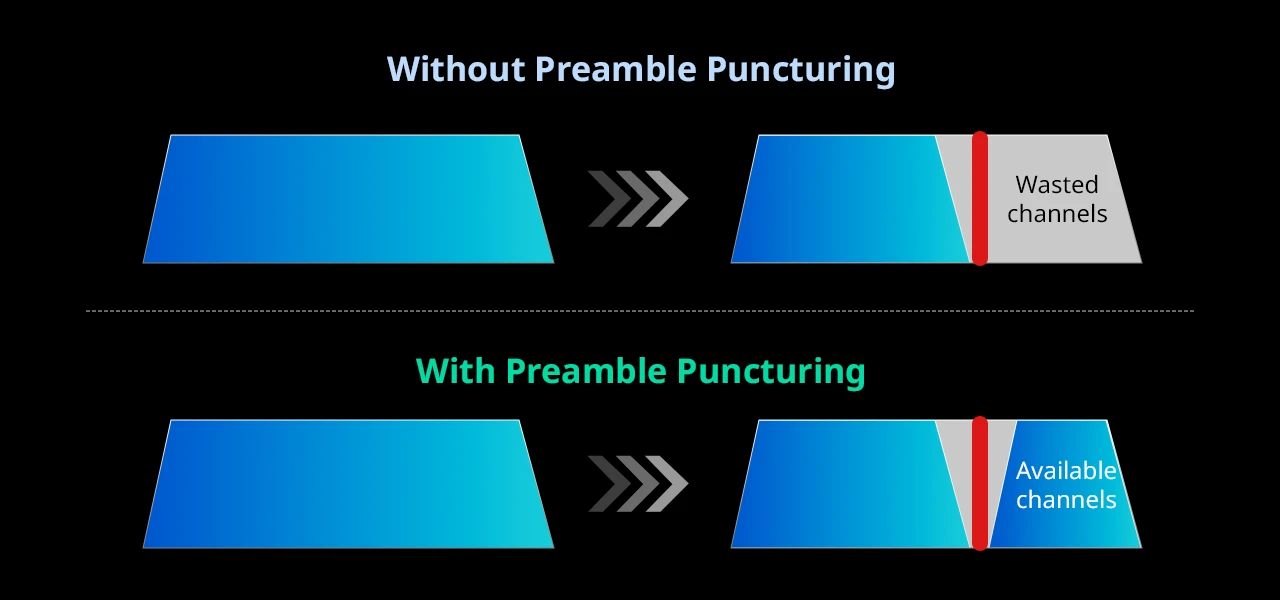

Preamble Puncturing

Preamble Puncturing

Maximizes usable bandwidth in crowded environments
by bypassing interference-prone channels

MRU

Multiple Resource Units

Boosts network efficiency and capacity for smooth
performance with multiple connected devices

Cloud, Make Your Business Easy

  • Reyee Mesh

    Reduce Cabling Costs

  • WIO 3

    Powered by AI

  • Standalone AP Portal

    Free & Easy

  • Heatmap

    Visualizing the Installation Process

Key Specifications
Product Information
Product Type
Product Type
  • Ceiling AP
Hardware Specifications
Wi-Fi Radio
6 GHz Wi-Fi
  • No
5 GHz Wi-Fi
  • Wi-Fi 4 (IEEE 802.11a/n)
    Wi-Fi 5 (IEEE 802.11ac)
    Wi-Fi 6 (IEEE 802.11ax)
    Wi-Fi 7 (IEEE 802.11be)
2.4 GHz Wi-Fi
  • Wi-Fi 4 (IEEE 802.11b/g/n)
    Wi-Fi 6 (IEEE 802.11ax)
    Wi-Fi 7 (IEEE 802.11be)
Radio design
  • Dual-radio
    4 spatial streams
    ● 2.4 GHz: 2 x 2, MU-MIMO
    ● 5 GHz: 2 x 2, MU-MIMO
6 GHz channel width
  • No
Maximum wireless data rate
  • 3570 Mbps
6 GHz wireless data rate
  • No
5 GHz wireless data rate
  • 2882 Mbps
2.4 GHz wireless data rate
  • 688 Mbps
Maximum transmit power (6 GHz)
  • No
Maximum transmit power (5 GHz)
  • Combined power: 25.7 dBm (single-stream power: 21 dBm)
    Note: The transmit power varies according to regulations in different countries and regions.
Maximum transmit power (2.4 GHz)
  • Combined power: 25 dBm (single-stream power: 22 dBm)
    Note: The transmit power varies according to regulations in different countries and regions.
Maximum transmit power
  • Frequency bands and maximum Effective Isotropic Radiated Power (EIRP):
    Note: Country specific restrictions apply.
    European Union & United Kingdom
    2400–2483.5 MHz, EIRP ≤ 20 dBm
    5150–5350 MHz, EIRP ≤ 23 dBm
    5470–5725 MHz, EIRP ≤ 30 dBm
    Myanmar:
    2400–2483.5 MHz, EIRP ≤ 23 dBm
    5725–5825 MHz, EIRP ≤ 30 dBm
    Thailand:
    2400–2483.5 MHz, EIRP ≤ 20 dBm
    5150–5350 MHz, EIRP ≤ 23 dBm
    5470–5725 MHz, EIRP ≤ 30 dBm
    5725–5825 MHz, EIRP ≤ 30 dBm
    Indonesia:
    2400–2483.5 MHz, EIRP ≤ 27 dBm
    5150–5350 MHz, EIRP ≤ 23 dBm
    5725–5825 MHz, EIRP ≤ 23 dBm
    Egypt:
    2400–2483.5 MHz, EIRP ≤ 20 dBm
    5150–5350 MHz, EIRP ≤ 23 dBm
Power Supply and Consumption
Local power supply
  • Yes, one DC power connector (12 V, 1.5 A)
Dimensions of the DC connector
  • Outer diameter: 5.5 mm (0.22 in.)
    Inner diameter: 2.1 mm (0.08 in.)
    Depth: 10 mm (0.39 in.)
PoE In standard
  • ● IEEE 802.3af (PoE)
    ● IEEE 802.3at (PoE+)
Maximum power consumption
  • 14 W
Environment and Reliability
Operating temperature
  • 0°C to 40°C (32°F to 104°F)
IP rating
  • IP41
Dimensions and Weight
Product dimensions (diameter x height)
  • Ø195 mm x 41 mm (Ø7.68 in. x 1.61 in.) (excluding the mounting bracket)
Weight
  • ≤ 0.6 kg (1.32 lbs.) (without packaging materials)
Color
  • White
Software Specifications
WLAN
4K-QAM
  • Yes
MLO
  • Yes
Maximum number of SSIDs
  • 8
Maximum number of associated wireless clients
  • 64 (2.4 GHz)
    511 (5 GHz)
    511 (2.4 GHz and 5 GHz enabled)
Recommended number of associated wireless clients
  • ● Support for IEEE 802.11ax and 160 MHz:
    16 (2.4 GHz)
    84 (5 GHz)
    100 (2.4 GHz and 5 GHz enabled)
    ● Support for IEEE 802.11ax and 80 MHz:
    16 (2.4 GHz)
    52 (5 GHz)
    68 (2.4 GHz and 5 GHz enabled)
    ● Support for IEEE 802.11ac:
    12 (2.4 GHz)
    32 (5 GHz)
    44 (2.4 GHz and 5 GHz enabled)
Maximum number of devices that can be managed
  • 300
